Description

Features:

Model No: TASC65

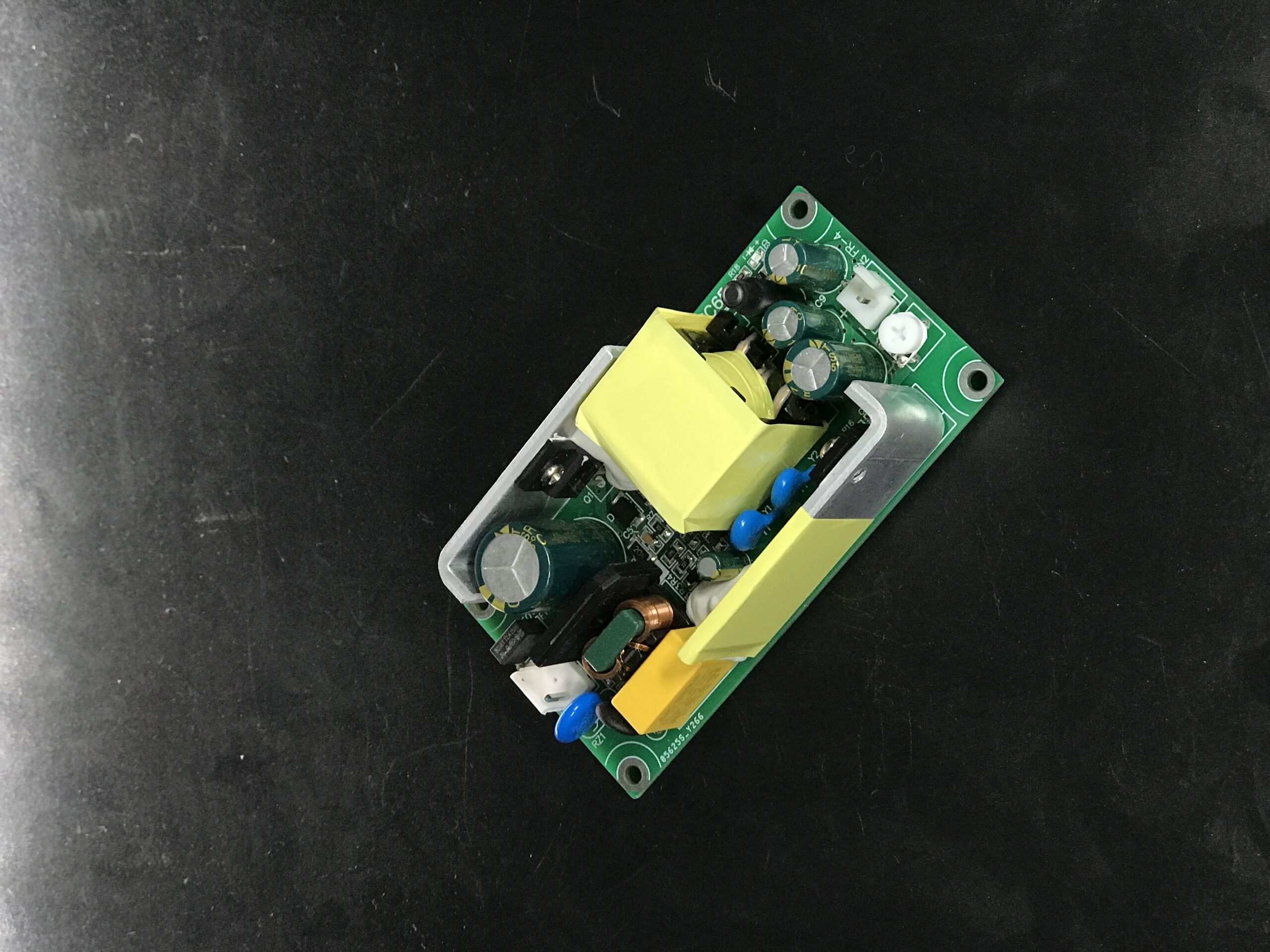

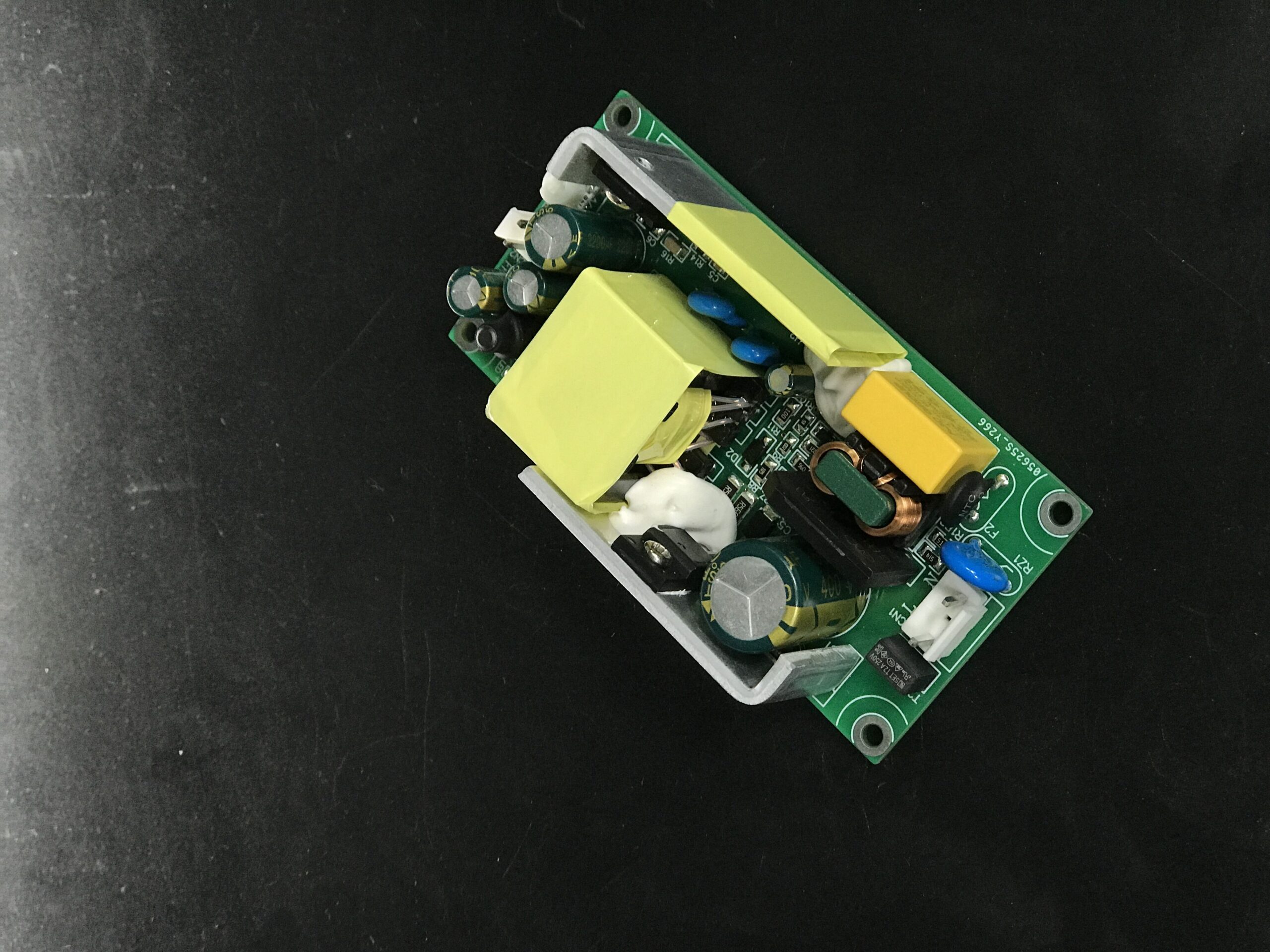

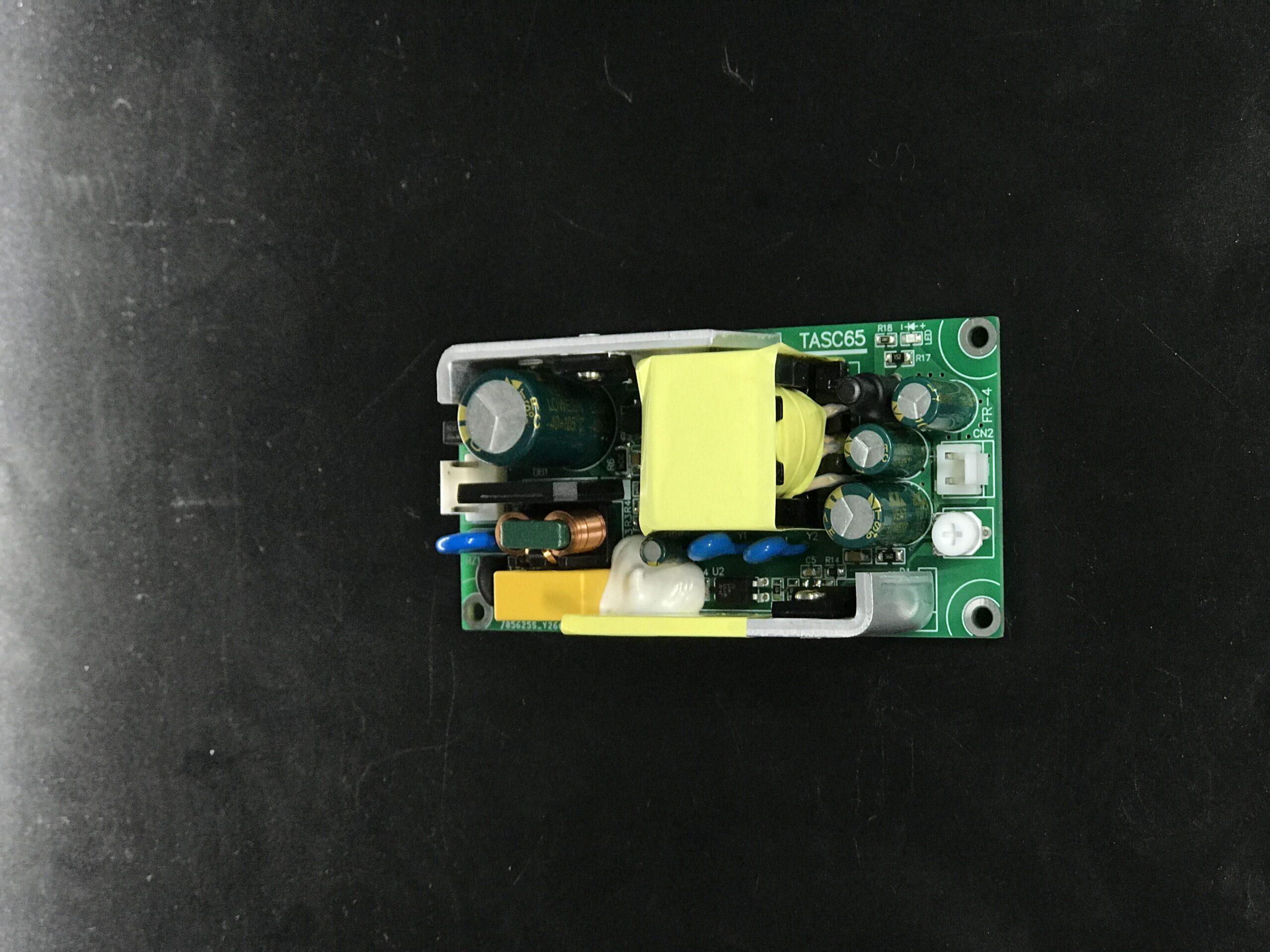

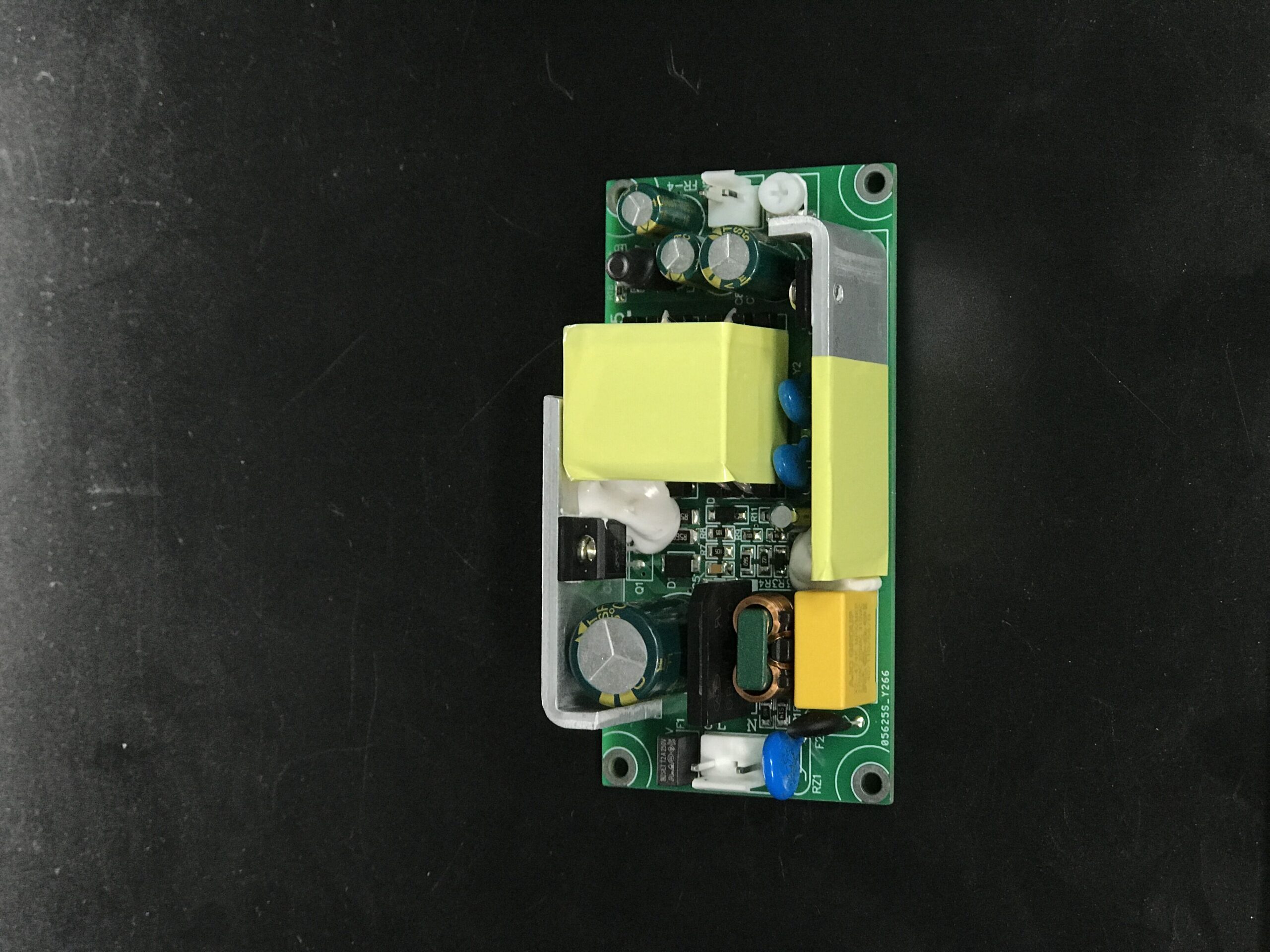

Product Name: Factory Supply 60W Customized Open Frame Power Supply

* Ultra small shape design, easy to install

* Full load operation, low temperature rise

* Meet safety requirements, and isolation withstand voltage is greater than 3000VAC

*Compliant with EMC design, can be certified, low ripple processing.

*Optional synchronous rectification technology, higher efficiency and lower temperature rise.

* Output short circuit, over current, over power protection functions are perfect.

Remarks:

Focus on producing the following products:

5v open frame power supply



Electrical Parameters/Specifications
Model No		TASC65-24V2.5A
Output	DC voltage	24V
	voltage range	22.5V~26.5V
	Rated current	2.5A
	Current range	0~2.5A
	Rated power	60W
	Ripple and Noise (Maximum)	120mVp-p
	Voltage accuracy	±3%
	Linear adjustment rate	±0.5%
	Load Regulation	±1%
	Efficiency (TYP)	87%
	Voltage adjustment range	not adjustable
	Start-up, rise time	1500ms,30ms/220VAC  2500ms,30ms/110VAC(full load）
Input	voltage range	VAC100-240V  VDC127~370V (Please refer to “Derating Curve”)
	Frequency Range	50Hz/60Hz
	AC current (TYP)	0.55A/220VAC,1.1A/110V
	Inrush current (TYP)	COLD START 45A
	leakage current	<2mA/240VAC
Current Protection	short circuit	Protection mode: hiccup mode, automatic recovery after abnormal condition is removed
	over current	110%~200% of rated output current
	over power	110%~200% of rated output power
Environmental	Operating temperature	﹣20～﹢70℃ (Please refer to “Derating Curve”)
	Working humidity	20~90%RH, no condensation
	Storage temperature and humidity	﹣40～﹢85℃,10～95%RH
	Vibration resistant	10～500Hz, 2G 10 minutes/cycle, X, Y, Z axis each 60 minutes
Safety and Electromagnetic Compatibility	safety regulations	Refer to CE, CCC, IT, general standard design for home appliances (requires a complete product test to confirm whether it passes)
	Pressure resistance	I/P-O/P:3KVAC
	Insulation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70%RH
	Electromagnetic Compatibility Emissions	Refer to CE, CCC, IT, general standard design for home appliances (requires a complete product test to confirm whether it passes)
	Electromagnetic Compatibility Immunity	Refer to CE, CCC, IT, general standard design for home appliances (requires a complete product test to confirm whether it passes)
Mechanical	Size (L*W*H)	101.6*50.8*31mm(L*W*H）
	weight	About 0.55Kg/PCS
Remarks	1. Unless otherwise specified, all specifications are measured under the input of 220VAC, rated load, and 25°C ambient temperature.
	2.Ripple and noise measurement method: use a 30CM twisted pair cable, and the terminals should be connected in parallel with 0.1uf and 47uf capacitors, and measure at 20MHZ bandwidth.
	3.Accuracy: including setting error, linear adjustment rate and load adjustment rate.
	4.Linear adjustment rate measurement method: under rated load, from low voltage to high voltage test.
	5.Load regulation measurement method: from 0% to 100% rated load.
	6.The power supply should be regarded as a part of the components in the system, and the relevant confirmation of electromagnetic compatibility should be carried out in conjunction with the terminal equipment.
