Description

Features：

Model No: TA128

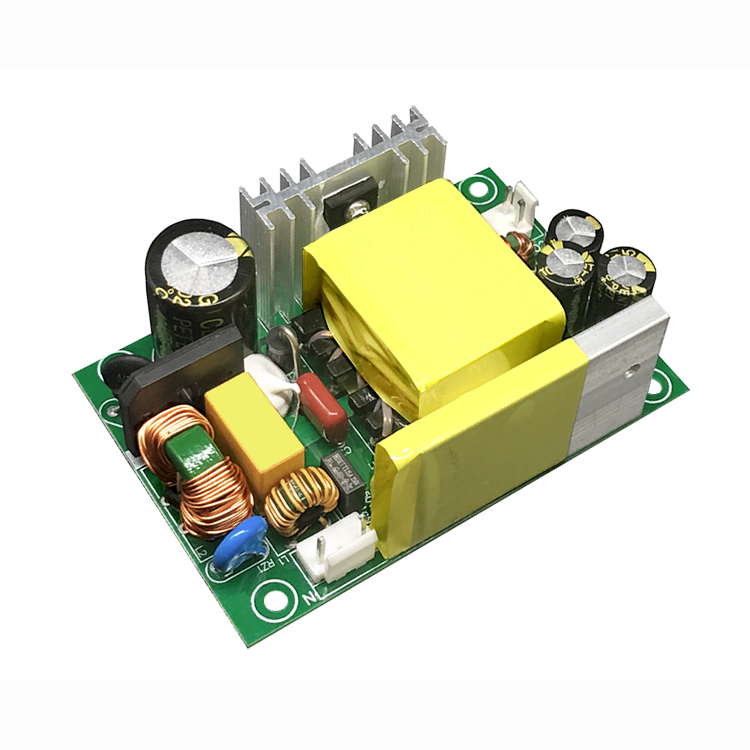

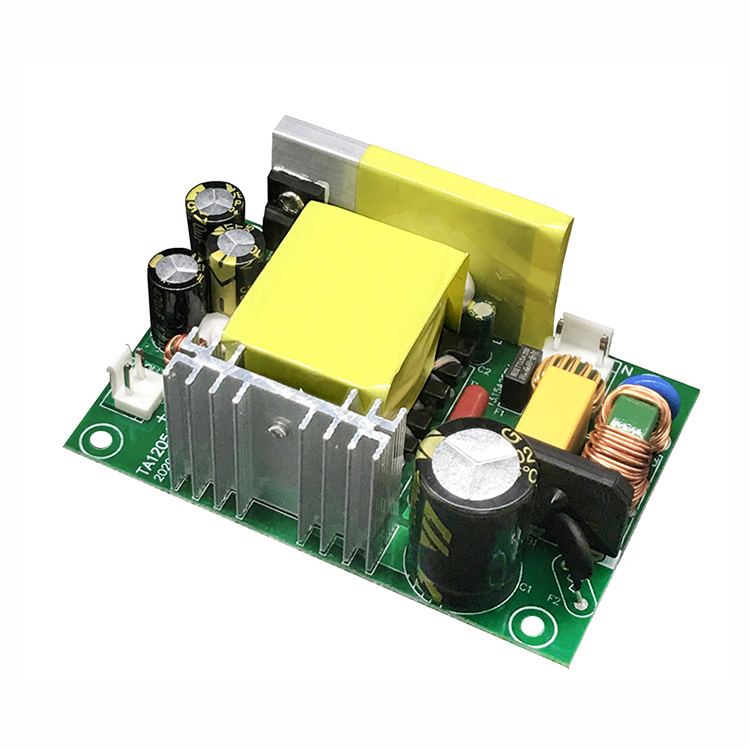

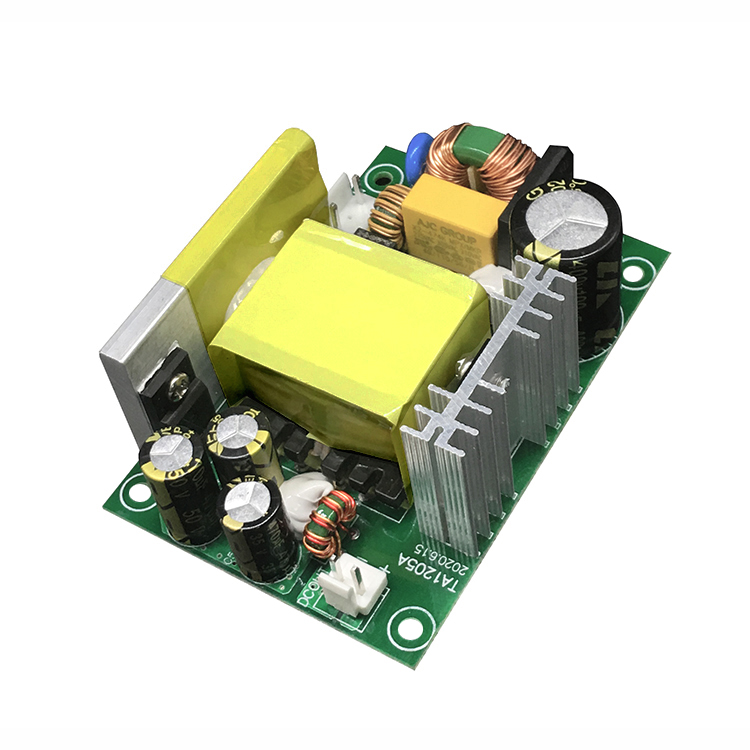

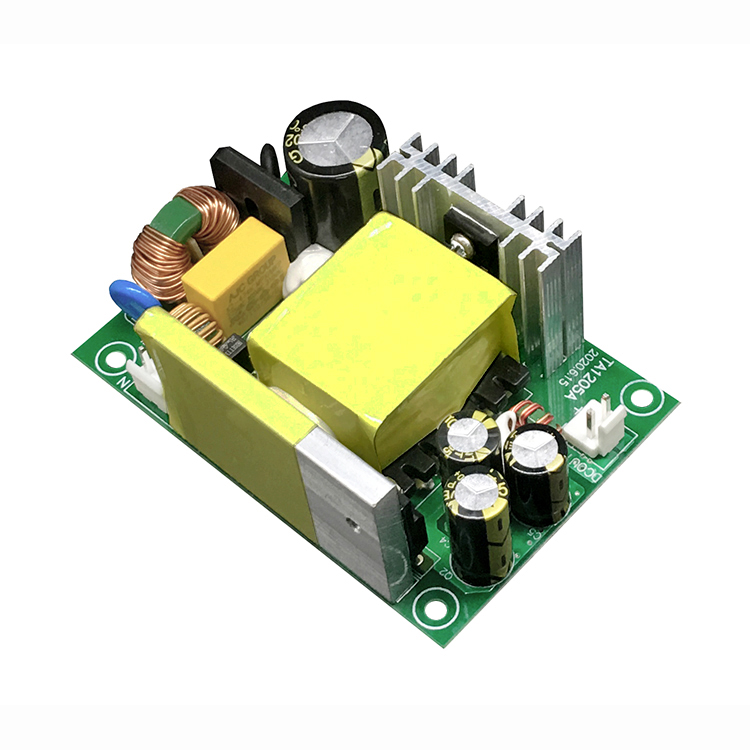

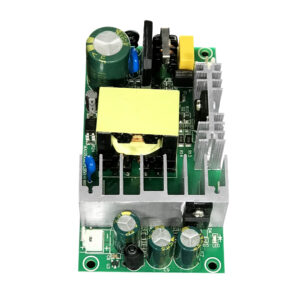

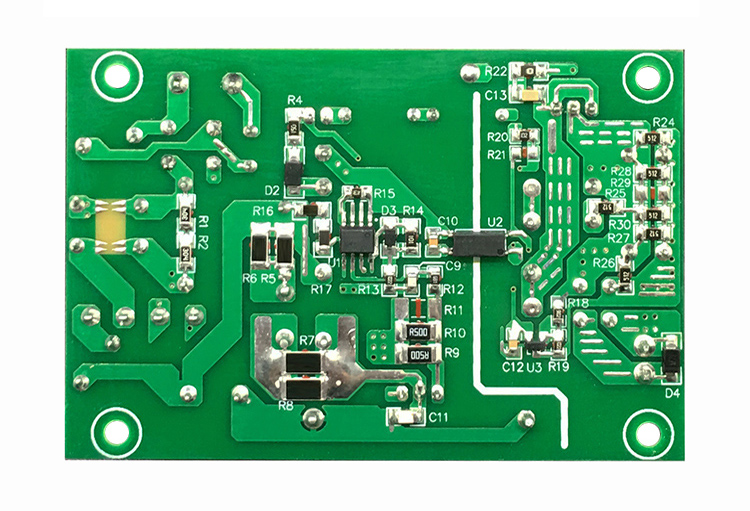

Product Name: Factory OEM Customized Open frame 12v 24v output power supply

* Ultra small shape design, easy to install

* Full load operation, low temperature rise

* Meet safety requirements, and isolation withstand voltage is greater than 1500VAC

* Economical and practical, stable quality, low ripple processing.

* Optional synchronous rectification technology, higher efficiency and lower temperature rise.

* Output short-circuit, over-current, over-power protection functions are perfect.

Remarks:

Focus on producing the following products:

open frame power

Electrical Parameters/Specifications
Model No		TA128-12V8A	TA128-12V10A	TA128-24V4A	TA128-24V5A
Output	DC voltage	12V	12V	24V	24V
	Rated current	8A	10A	4A	5A
	Current range	0-10A	0-12A	0-6A	0-7A
	Rated power	100W	100W	100W	120W
	Ripple and Noise (Maximum)	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	Voltage accuracy	±3%	±3%	±3%	±3%
	Linear adjustment rate	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1%	±1%	±1%	±1%
	Efficiency (TYP)	88.5%（220V MAX）	88.5%（220V MAX）	85%（220V MAX）	85%（220V MAX）
	Voltage adjustment range	not adjustable
	Start-up, rise time	1500ms,30ms/220VAC  2500ms,30ms/110VAC(full load）
Input	voltage range	VAC90-264V  VDC127~370V (Please refer to “Derating Curve”)
	Frequency Range	47~63Hz
	AC current (TYP)	1.1A/220VAC,2A/110V
	Inrush current (TYP)	COLD START 35A
	leakage current	<2mA/240VAC
Current Protection	short circuit	Protection mode: hiccup mode, automatic recovery after abnormal condition is removed
	over current	110%~200% of rated output current
	over power	110%~200% of rated output power
Environmental	Operating temperature	﹣20～﹢60℃ (Please refer to “Derating Curve”)
	Working humidity	20~90%RH, no condensation
	Storage temperature and humidity	﹣40～﹢85℃,10～95%RH
	Vibration resistant	10～500Hz, 2G 10 minutes/cycle, X, Y, Z axis each 60 minutes
Safety and Electromagnetic Compatibility	safety regulations	Refer to CE, CCC, IT, general standard design of home appliances, (customer certification test is required)
	Pressure resistance	I/P-O/P:3KVAC
	Insulation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70%RH
	Electromagnetic Compatibility Emissions	Refer to CE, CCC, IT, general standard design of home appliances, (customer certification test is required)
	Electromagnetic Compatibility Immunity	Refer to CE, CCC, IT, general standard design of home appliances, (customer certification test is required)
Mechanical	Size (L*W*H)	105*60*36mm(L*W*H）
	weight	About 0.7Kg/PCS
Remarks	1. Unless otherwise specified, all specifications are measured under the input of 220VAC, rated load, and 25°C ambient temperature.
	2.Ripple and noise measurement method: use a 30CM twisted pair cable, and the terminals should be connected in parallel with 0.1uf and 47uf capacitors, and measure at 20MHZ bandwidth.
	3.Accuracy: including setting error, linear adjustment rate and load adjustment rate.
	4.Linear adjustment rate measurement method: under rated load, from low voltage to high voltage test.
	5.Load regulation measurement method: from 0% to 100% rated load.
	6.The power supply should be regarded as a part of the components in the system, and the relevant confirmation of electromagnetic compatibility should be carried out in conjunction with the terminal equipment.
