In the world of electronics and electrical engineering, power supplies are critical components that require careful consideration. Among the various types of power supplies, open frame and closed frame designs are two of the most common. Each of these has its own strengths and applications. This article aims to provide a comprehensive understanding of the differences between open frame and closed frame power supplies, taking into account key terms such as open frame switching power supply, AC DC open frame, and open frame AC DC.
Understanding Power Supply Basics
Before diving into the differences, it’s essential to understand what power supplies do. Fundamentally, power supplies convert electrical energy from a source (often AC electricity from the wall) into a specific form or voltage needed for electronic devices. Two primary categories based on design include open frame and closed frame power supplies.
What is an Open Frame Power Supply?

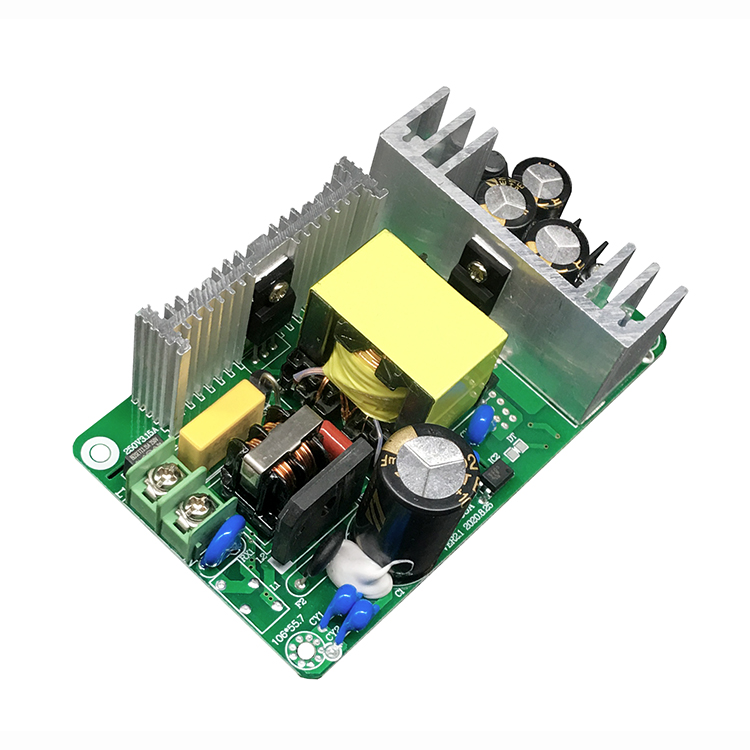

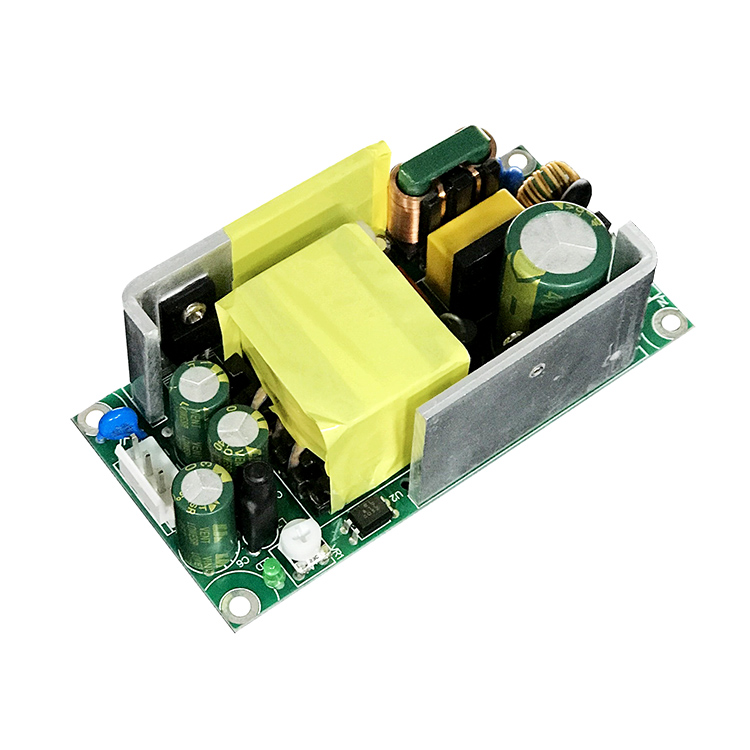

An open frame power supply is characterized by its lack of an enclosure. It typically consists of a bare circuit board mounted with essential components. This design inherently offers flexibility and is often utilized within protected equipment or enclosures. Key products within this category include the open frame switching power supply and AC DC open frame power supplies.
Advantages of Open Frame Power Supplies
– Cost-Effectiveness: Open frame designs are generally more affordable due to the absence of an external case. For projects with tight budgets, the cost savings can be substantial.
– Enhanced Thermal Management: Open frame designs allow for better heat dissipation through natural airflow, leading to improved thermal performance without the need for additional cooling mechanisms.
– Ease of Customization: The lack of an enclosure makes it easier for engineers to customize and adapt these power supplies to specific requirements, enhancing design flexibility.
– Lightweight: With fewer materials used in construction, open frame power supplies are typically lighter, which is beneficial for weight-sensitive applications.
Applications of AC DC Open Frame Power Supplies
Open frame AC DC power supplies are widely found in various industries, including:
– Medical Devices: Used within equipment that is protected by enclosures, such as MRI machines and patient monitors, offering reliability and safety.
– Telecommunications: Employed in stable environments like indoor networking equipment where high efficiency and reliability are paramount.
– Industrial Automation: Open frame power supplies are used in automated machinery and control systems, where they are usually housed within protective enclosures.
What is a Closed Frame Power Supply?
Closed frame power supplies, in contrast, are fully enclosed in a protective casing. This design helps shield the internal components from environmental factors such as dust, moisture, and physical damage—making them suitable for harsher operational settings.
Advantages of Closed Frame Power Supplies
– Environmental Protection: The casing safeguards internal components against external contaminants, extending the lifespan and reliability of the power supply.
– Safety: The enclosure prevents accidental contact with electrical components, thus providing an extra layer of safety.
– Durability: Due to the protective case, closed frame power supplies typically offer better resilience against shocks and vibrations.
– Aesthetic Design: Enclosed designs can seamlessly integrate into the overall device look, providing a clean and polished appearance.
Factors to Consider When Choosing Between Open Frame and Closed Frame Power Supplies
When deciding between open frame and closed frame power supplies, several factors need consideration:
– Application Environment: In protective environments, open frame power supplies are ideal. Обаче, in environments prone to dust or moisture, closed frame supplies provide necessary protection.
– Budget: Open frame supplies are usually more budget-friendly, making them suitable for cost-sensitive projects unless additional protective measures are required, which could increase total expenditure.
– Thermal Management Needs: For applications where heat dissipation is critical, open frame designs naturally allow better airflow and cooling.
– Size and Weight Constraints: If space and weight are constraints, open frame designs offer a more compact and lightweight solution.
Open Frame Switching Power Supplies in Modern Applications
Open frame switching power supplies are highly efficient and versatile, converting AC to DC with minimal energy loss. They are used in a wide range of electronic devices where efficient power conversion is necessary, including:
– Consumer Electronics: Televisions, set-top boxes, and other household electronics.
– Computing: Desktops, servers, and network switches often employ these power supplies for their efficiency and compact size.
– Instrumentation: Analytical and measurement equipment that requires stable and reliable power.
Conclusion
In conclusion, the choice between open frame and closed frame power supplies depends significantly on the specific needs and constraints of your project. Open frame power supplies, including open frame switching power supplies and open frame AC DC models, are best for applications requiring cost-efficiency, superior thermal management, and customization flexibility. Closed frame power supplies, with their protective cases, are ideal for environments requiring additional protection and durability.
By understanding the unique benefits and limitations of each type, you can make an informed decision that aligns with your project’s needs. Whether you opt for the open frame’s lightness and adaptability or the closed frame’s durability and protection, ensuring the right power supply enhances both the performance and longevity of your electronic devices.
